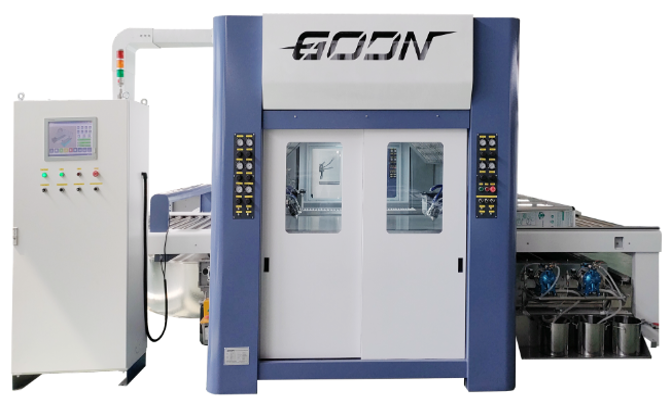

SPM1300PU-P Automatic Spraying Machine
Advantages:
Suitable for surface and side spray of furniture panels, doors etc. Adopt SCANNER to detect shape and size of the workpiece, to ensure precise spraying. With paper conveyor, no cleaning cost. Excellent air pressure and exhaust system with wind frequency adjustable to ensure the air matching in the spraying room. Second filter system ensure the room dustless. With special meter to display the situation of the filter. So, the filter can be changed or cleaned in time. Double high-pressure paint recycle design .
Technical Parameter:
| Model | SPM1300PU-P |
| Max. spraying width | 1300mm |
| Max. working thickness | 50mm(single side) 80mm(double side) |
| Max. feeding speed | 5.2m/min |
| Max. spraying gun | 8pcs |
| Gun reciprocate speed | 0-100m/min |
| Working pressure | 0.5-0.8Mpa |
| Total power | 14kw |
| Overall dimension | 5500*4450*2540mm |
| Weight | 4200kgs |
Post time: Mar-04-2026
